Peugeot 908 RC Concept

PEUGEOT 908 RC SET TO STEAL THE LIMELIGHT AT PARIS SHOW

  • Peugeotís latest concept car to debut at the Paris Motor Show in September
  • Stylish four-door limousine combines power, comfort and green performance
  • Powered by a 5.5-litre V12 HDi DPFS engine mounted behind passengers

The raison díÍtre of any concept car is to explore new ideas and to test those ideas in an attempt to create the ultimate solution. Know-how and passion, combined with imagination then become the motive force that turns dreams into reality. The Peugeot 908 RC evokes passion and imagination to allow us to dream but it will also have a serious side.

The 908 RC owes its name to its engine: the Peugeot V12 HDi DPFS, which will power the racing version of the 908 in 2007. The abbreviation "RC", used to designate sports models in the Peugeot range in mainland Europe, also refers to the RC and RC concept cars which made their appearance in 2002 and whose architecture served as an inspiration during the design of this innovative project.

The original idea was to create a limousine with an imposing style that offered its four occupants a new driving sensation. The final design, however, is an uncompromising car that combines dynamic performance, comfort, luxury and environmental protection. In short, it is an exclusive four-door vehicle that will capture the imagination of both occupants and onlookers.

Engine and architecture

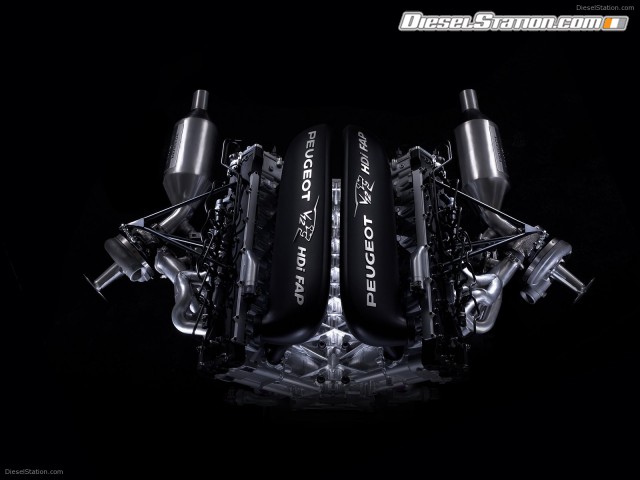

The 908 RC is powered by Peugeotís V12 HDi DPFS (diesel particulate filter system) diesel engine designed to take part in the "Le Mans Race Series" programme in 2007.

The engine has a capacity of 5.5-litres and offers a level of performance unprecedented for a diesel engine, with a maximum power output greater than 700bhp and, above all, an exceptional torque in excess of 1200Nm. With a 100į V angle architecture, the engineís centre of gravity is as low as possible. Two particulate filters are located at the end of each exhaust system ensuring the carís environmentally-friendly credentials.

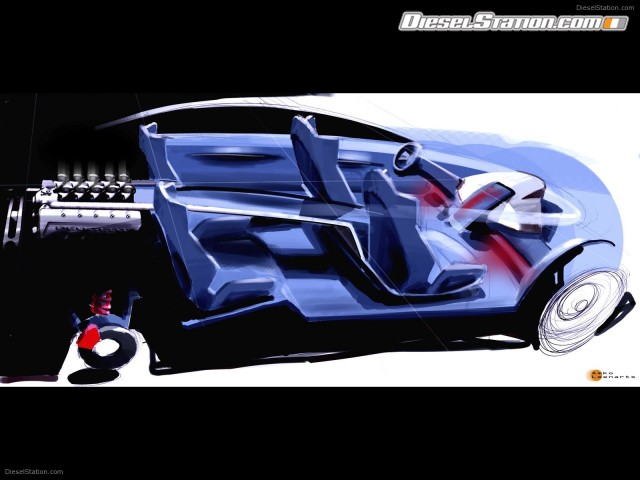

The originality of the 908 RC resides in its compact design, with the engine arranged in a rear central transverse position. Similarly the compact 6-speed electronically controlled sequential gearbox has been specially adapted to withstand the phenomenal torque, and is located under the engine.

The position of the power train allows the creation of a large-capacity boot, situated behind the final drive assembly and therefore not encroaching on the generous interior space of the passenger compartment. This design also allows the driving position to be moved forward, maximising the driving experience for both the driver and the passengers.

Exterior style

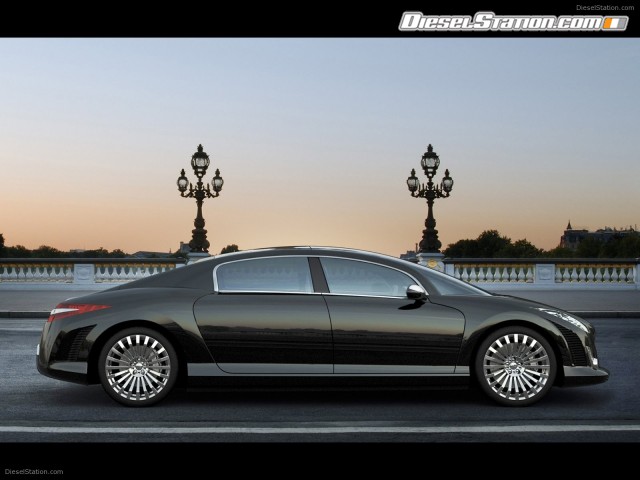

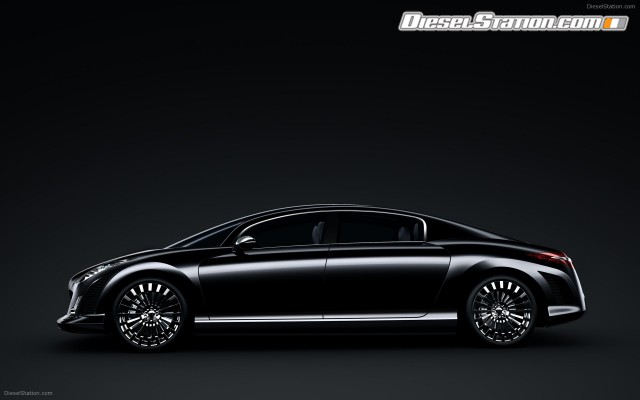

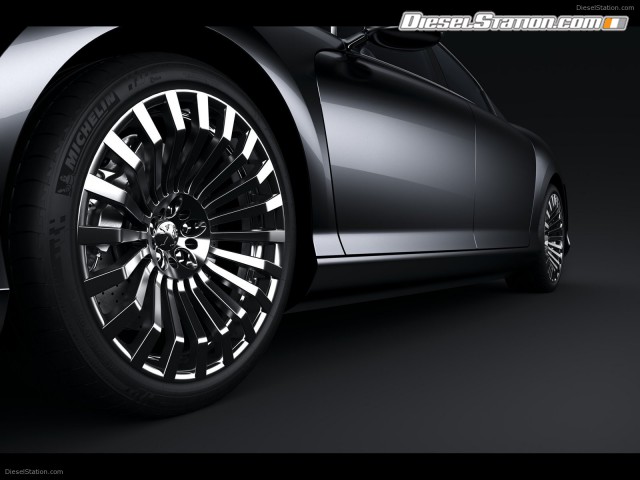

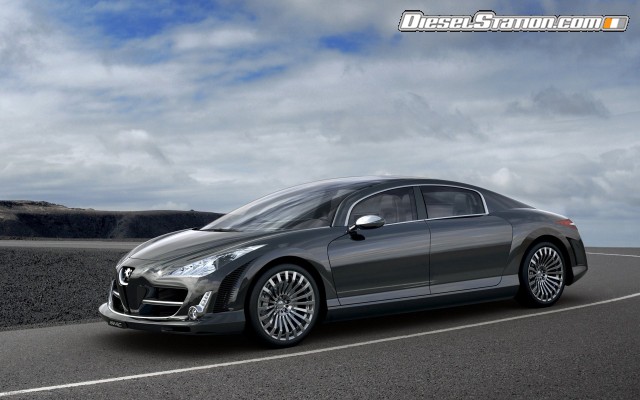

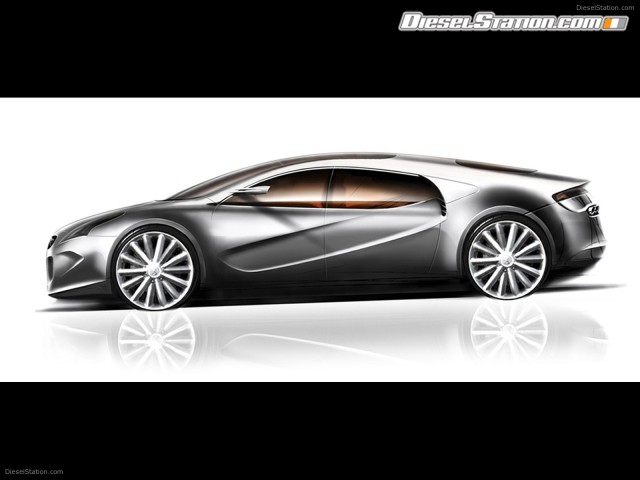

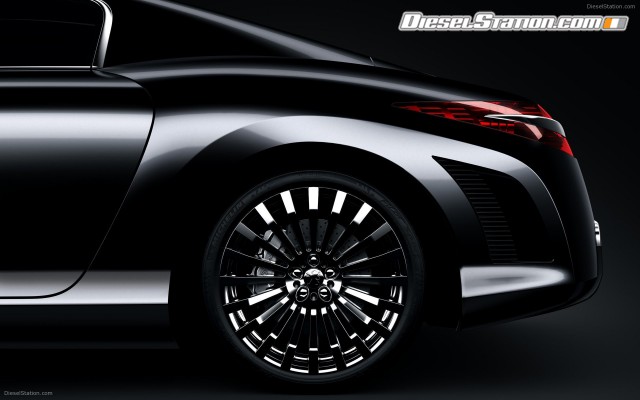

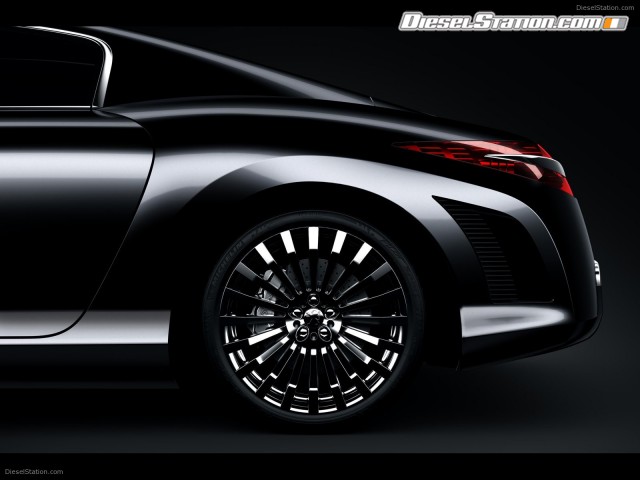

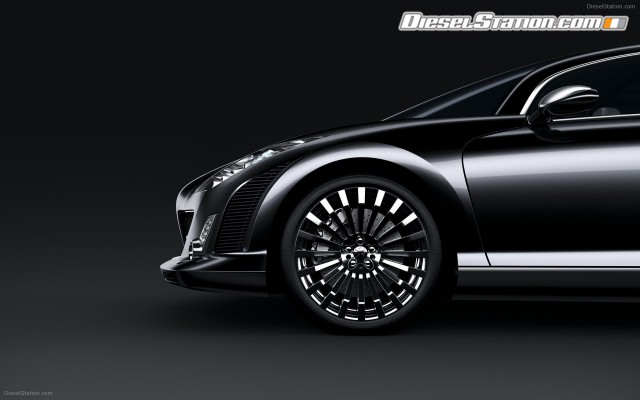

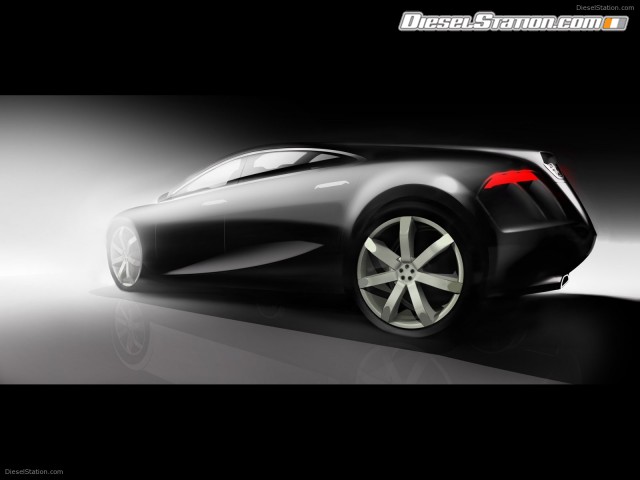

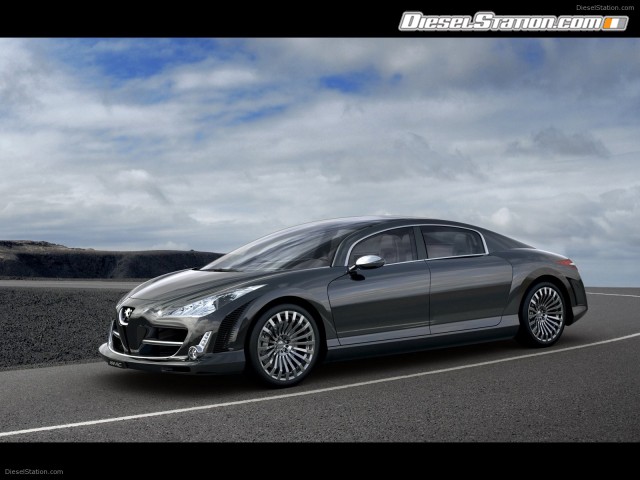

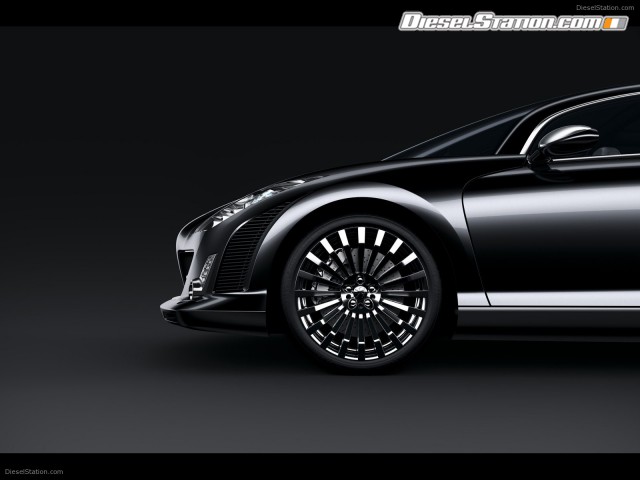

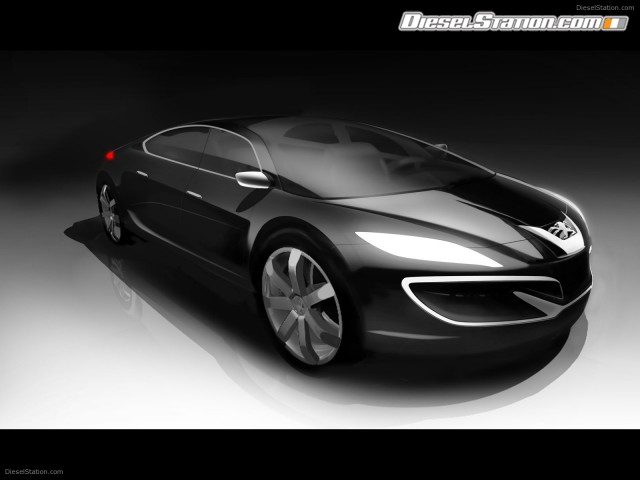

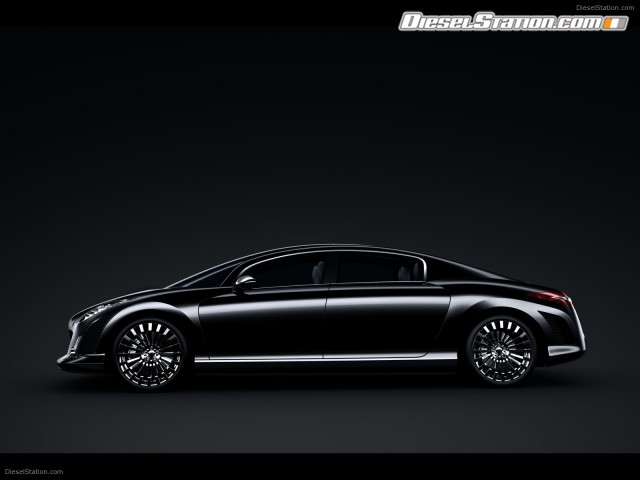

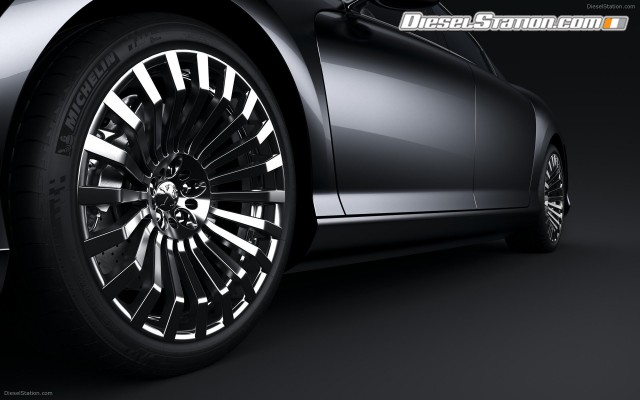

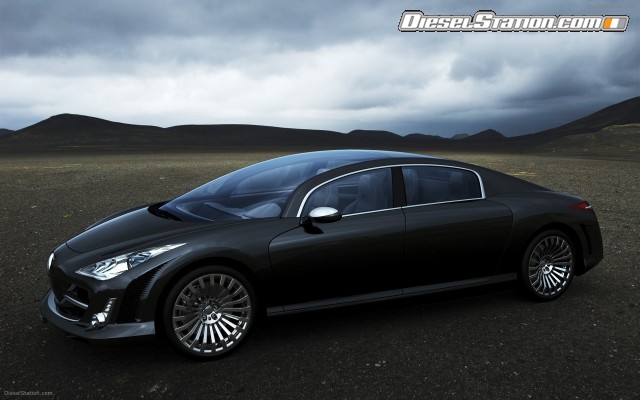

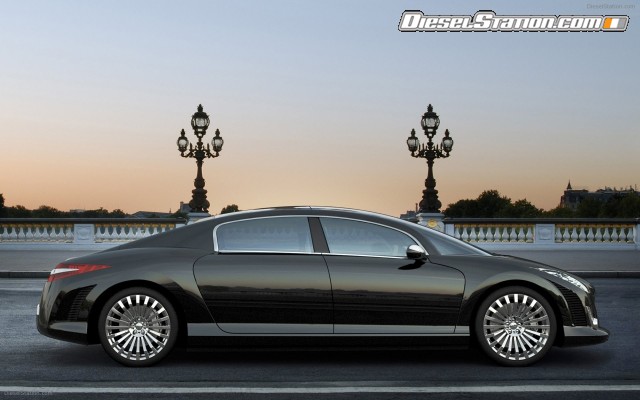

The design of the 908 RC creates a particularly low-lying exterior body with a stylish tapered design at the front of the vehicle. Its proportions create an elegant and dynamic statement. Sitting on large diameter 20 spoke alloy wheels (20íí at the front, 21íí at the rear); the overall effect is that of a big cat, from the nose at the front, to the tip of the rear lights.

More than ever, the Marqueís emblem has played a part in fashioning the power of expression of the 908 RC.

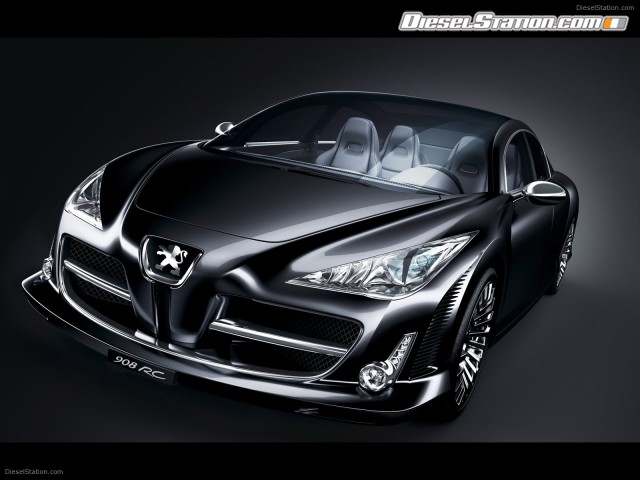

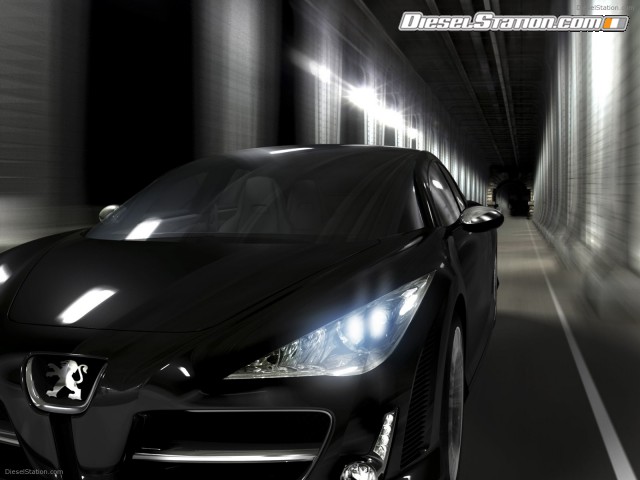

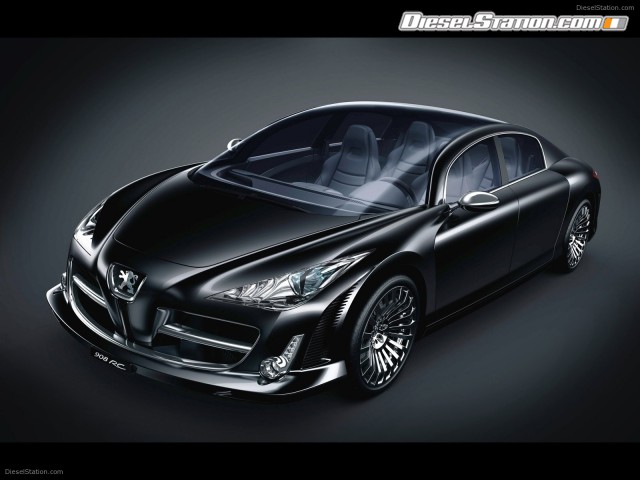

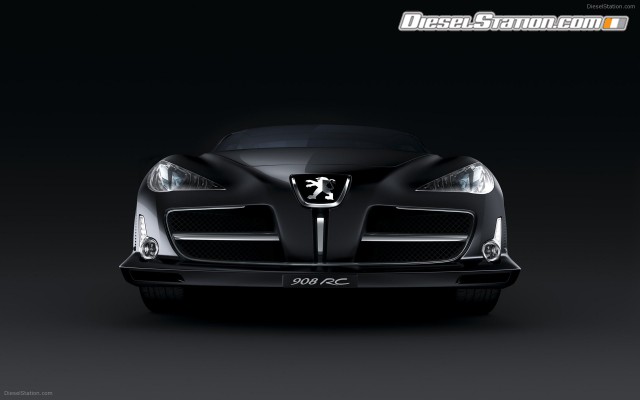

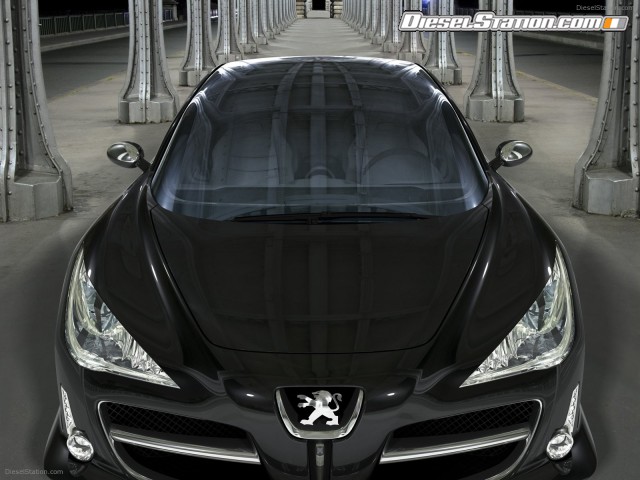

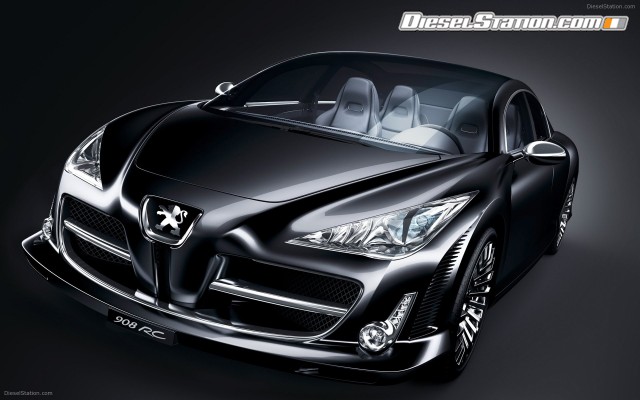

At the front, the lionís character seems to emanate from each detail, starting with the design of the headlights. Lighting is provided by light-emitting diodes (LEDs), with their dazzling appearance the result of a special finish given to the internal components. The exterior appearance of the lights looks like a crystal, cut like a precious stone, creating a faint outline like the pupil of an eye.

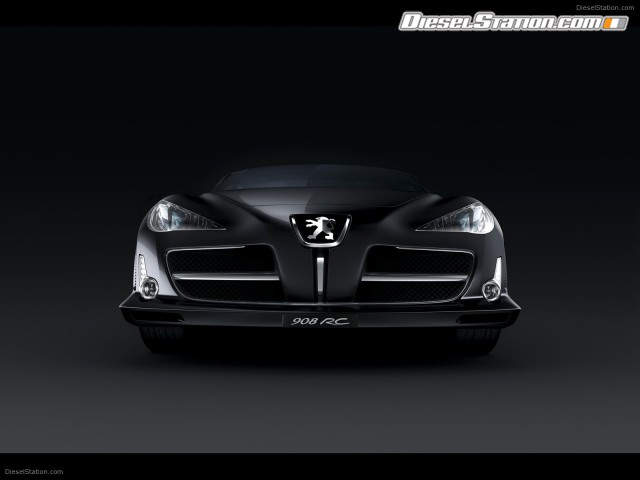

The bonnet draws its inspiration directly from the head of a big cat. The areas either side of the bonnet create the effect of the catís "cheeks" with the bonnet tapering down to a nose, highlighted by the large chromed emblem of the Marque.

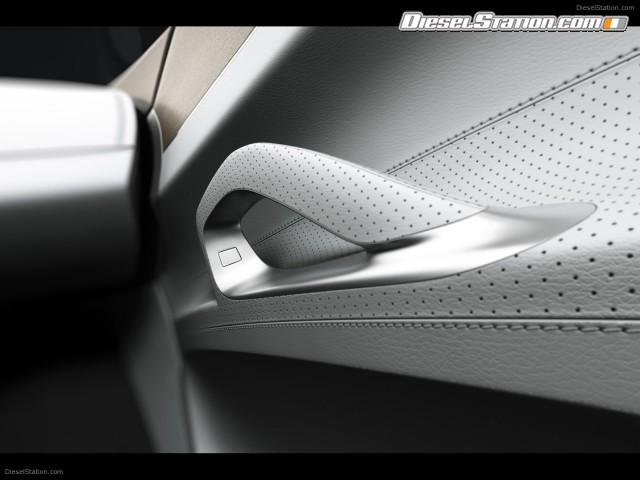

A lot of attention has been paid to the design of the exterior body, with its lack of door handles creating surfaces of great simplicity and purity, and highlighting to maximum effect the reflections that accentuate every facet of the body.

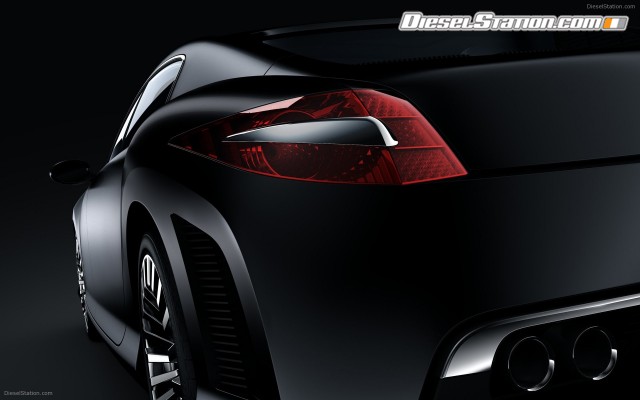

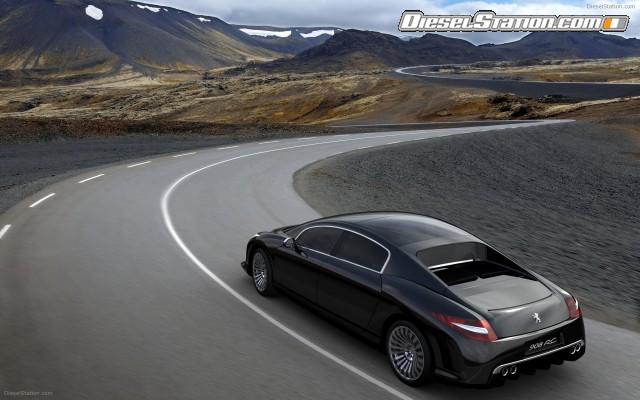

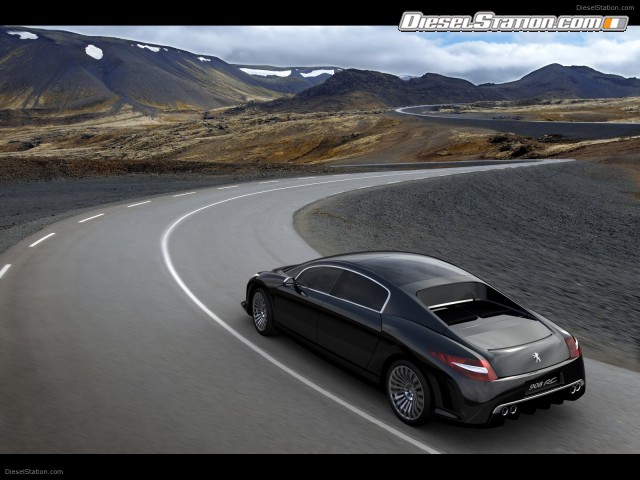

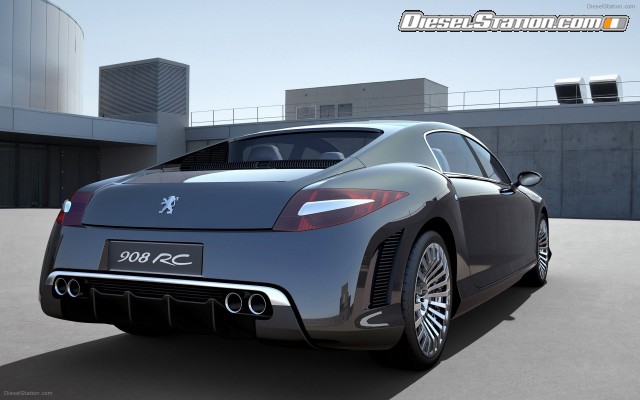

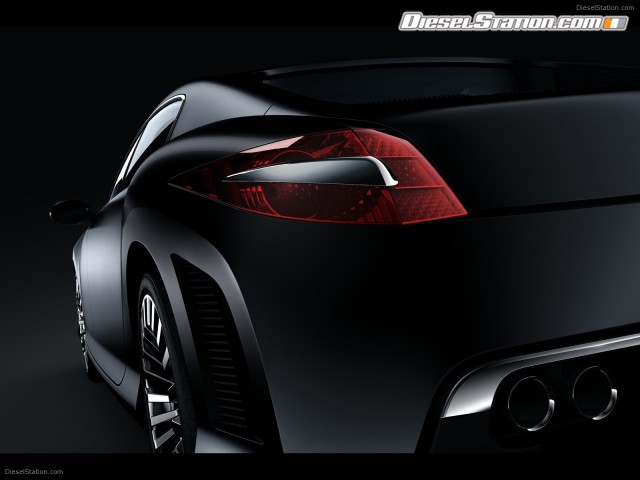

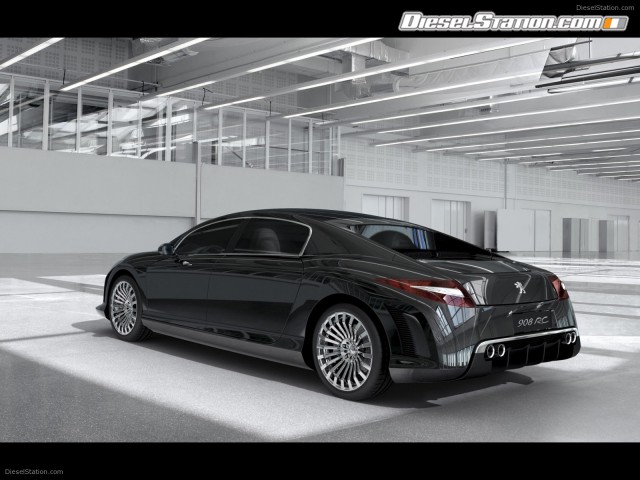

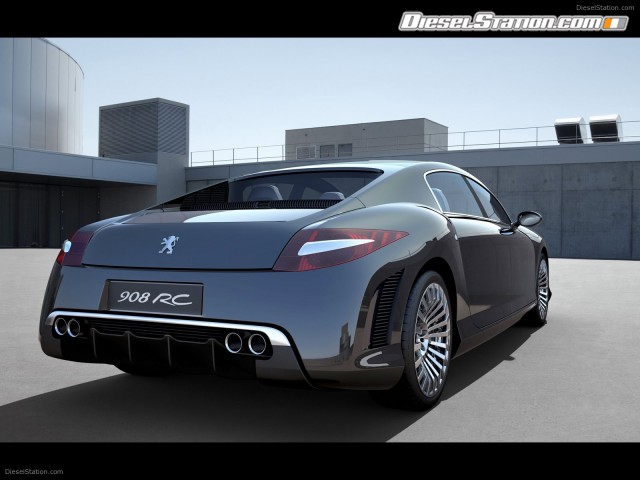

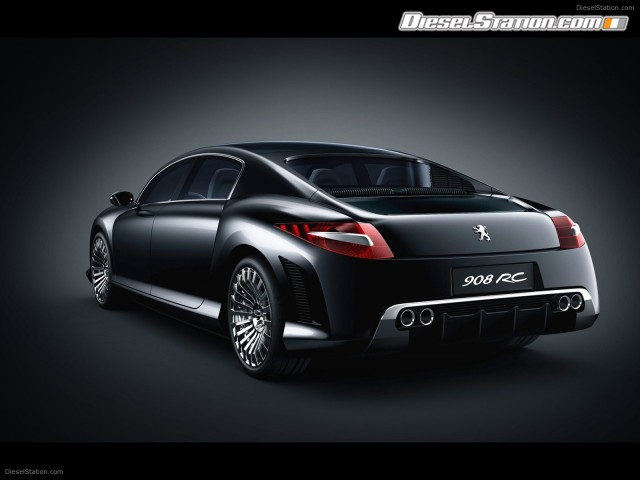

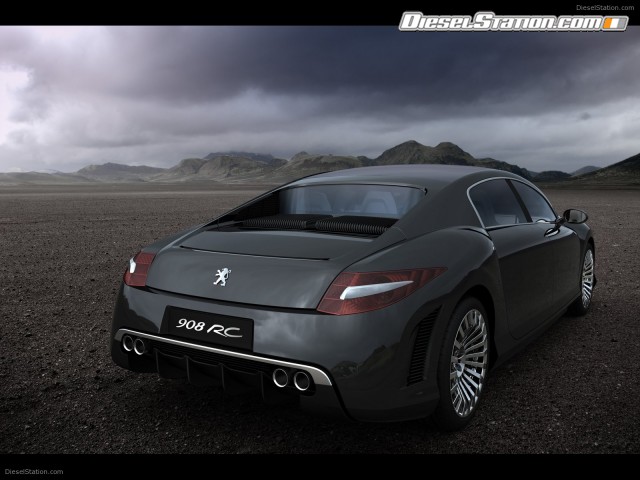

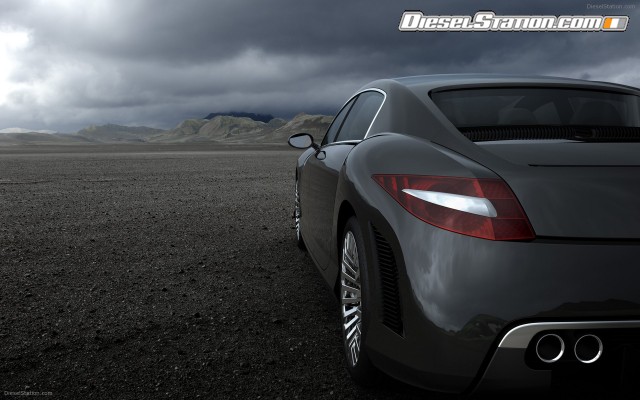

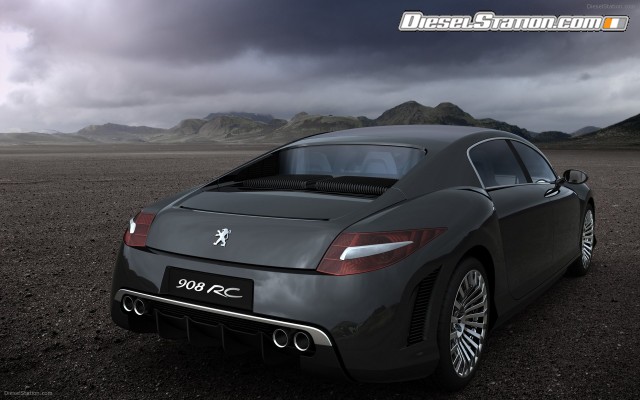

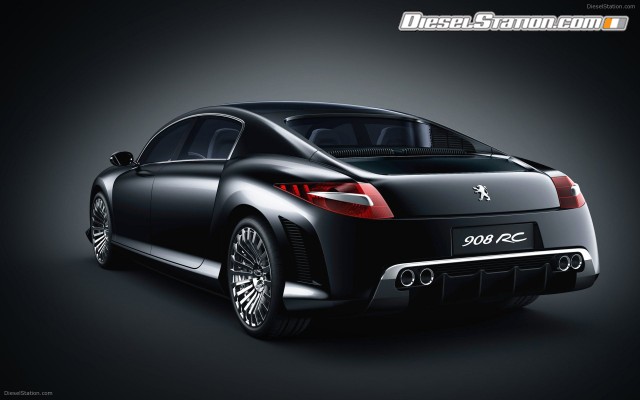

Aligned with the curves of the carís pronounced "hindquarters", the rear lights, equipped with LEDs, incorporate a polished aluminium insert evoking the shape of a powerful claw. The dynamic rear profile is characterised by the shape of the rear air diffuser, accentuated by chrome detailing and supported visually on each side by twin exhaust pipes.

The metallic black body colour with its bluish reflections further enhances the impression of status, dynamism and purity portrayed by this car.

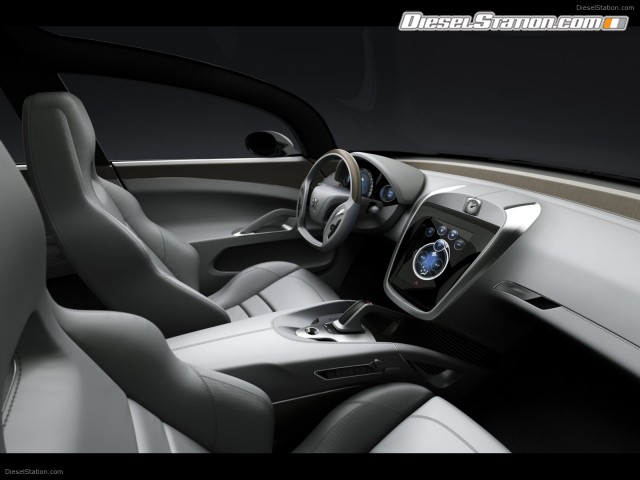

Inside the 908 RC

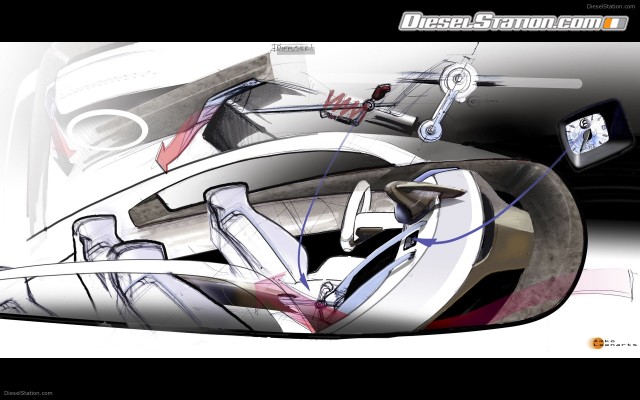

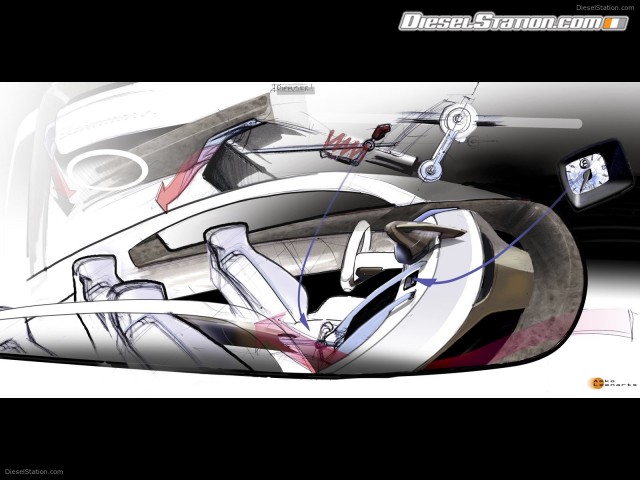

The ambience inside the 908 RC is the result of meticulous attention to detail on the part of the carís designers.

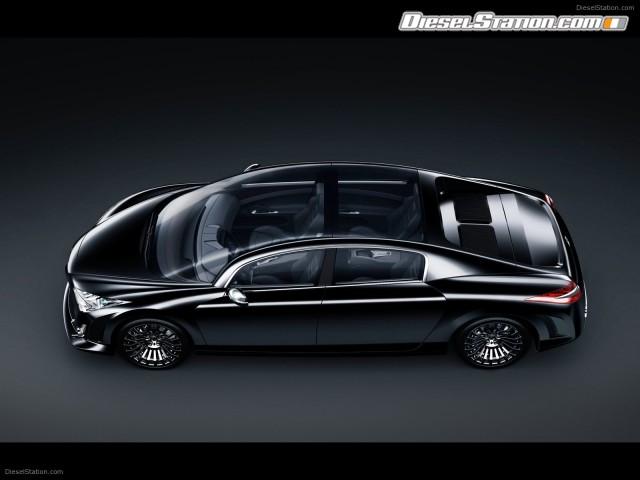

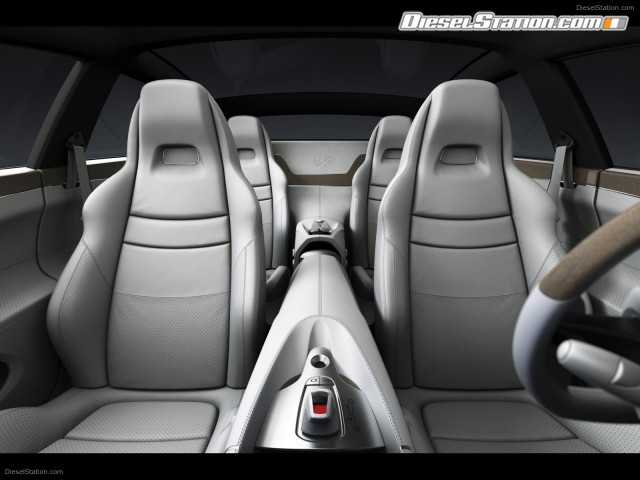

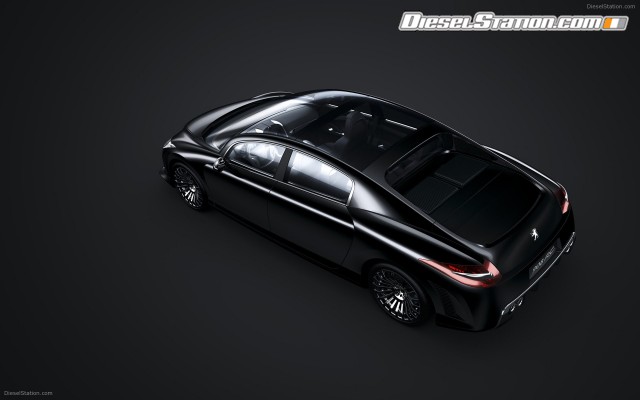

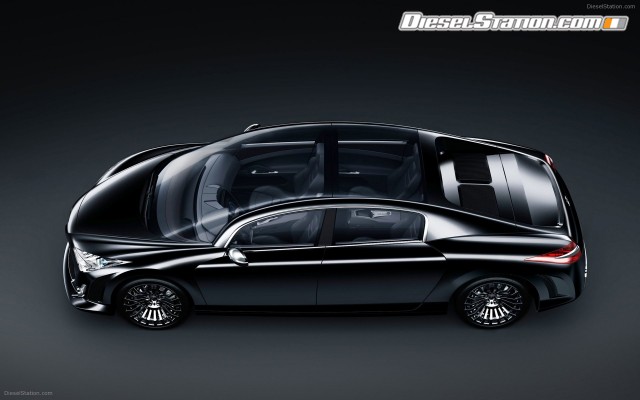

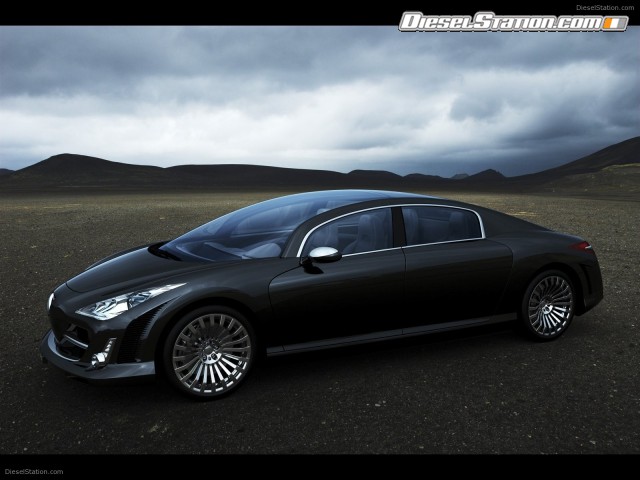

Thanks to a forward-positioned passenger compartment made possible by the carís architecture, and a large glazed surface area of 3m2, occupants are truly at one with the road and the passing landscape. The special shape of the huge front windscreen allows a completely unimpeded field of vision (as on the RC concept cars). The front windscreen stretches back behind the driverís head, as far as the B/C post where the glazed roof begins. This gives both front and rear passengers a sense of being at one with the outside environment. Unequalled brightness and visibility combine with a generous interior space, complete with four independent seats, helping to create a truly exceptional ambience.

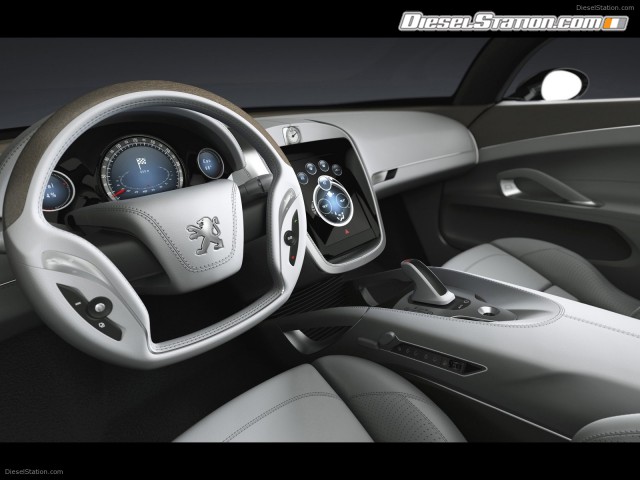

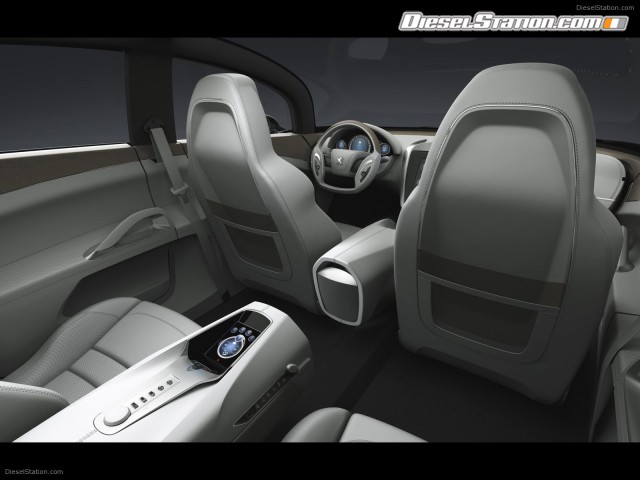

The light and flowing style of the interior, combined with the latest technology ensures purity of the design and a comfortable interior. For example, all vehicle functions (radio, MP3 player, satellite navigation, four-zone air conditioning, etc) can be easily controlled by means of a large touch screen - the Man/Machine Interface (MMI). The MMI is also accessible to the rear passengers, thanks to a multimedia screen positioned on the centre console separating the two rear seats.

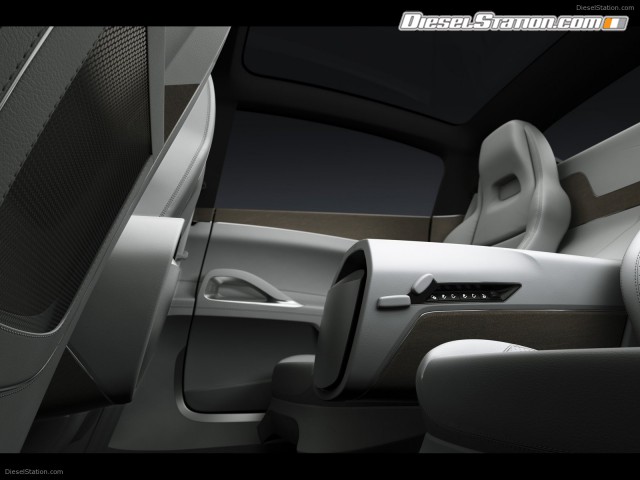

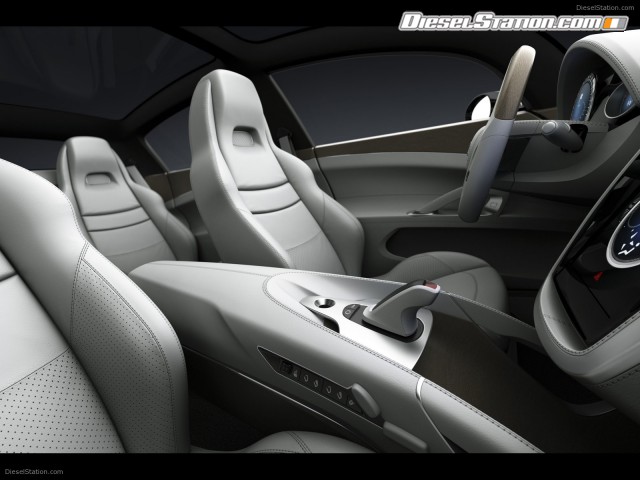

The high-quality materials and interior finish of the 908 RC create an atmosphere that is both luxurious and timeless. The passenger compartment features dark oak surrounds, integral amethyst-grey leather trim, polished aluminium inserts, touches of chrome, and a Bell&Ross clock: everything stimulates the senses of touch, sight and smell. Practical aspects have not been overlooked either. Numerous storage spaces, in addition to the large air conditioned glove box, are located in the door panels and also in the front and rear consoles.

Structure and Suspension

In the great tradition of Peugeot concept cars, the 908 RC is a unique model conceived in the inner sanctum of the Peugeot Design Centre in Paris. The vehicle is built around a pre-impregnated carbon composite and vacuum-polymerised aluminium honeycomb structure. The rear section is a self-supporting shell incorporating a sub-frame consisting of a tubular structure on which the engine and suspension are assembled.

Both at the front and the rear, the car features a drop link double wishbone type suspension, derived from the 407.

Braking is by means of four monobloc ceramic carbon composite discs which reduce weight and improve thermal efficiency. The wheels are fitted with Michelin Pilot Sport PS2 255/35 R20 tyres at the front and 285/30 R21 at the rear.

Aerodynamics

The carís aerodynamics have been particularly fine-tuned to attain an excellent drag coefficient of only 0.556. The air ducts were designed in a wind tunnel to optimise the carís performance and fuel consumption, while ensuring the necessary cooling of the power train.

A two-part front air intake directs air to cool both of the engineís radiators and also improve the carís aerodynamic performance by controlling the internal and external flow by means of the black anodised aluminium vents located upstream of the front wheels.

Air is provided to the engine by means of vents located in the rear quarter panels.

Air is also directed from the rear wheel arches, through the two intercoolers for the turbochargers and then out through the visible vents behind the wheel arch.

A controllable rear spoiler incorporated into the boot lid can be raised by the driver to improve road holding.

The flat under floor and diffuser enhance further the aerodynamic efficiency of the 908 RC.

Finally, the 908 RC, is a luxurious touring interpretation of the racing car of the future, through its engineering, it creates the spirit of the "gentleman driver". It is targeted at a very upmarket virtual customer, naturally accustomed to a very high level of luxury but above all passionate about their motoring and its history, but also in search of innovation coupled with assertive styling and uncompromised driving pleasure.

908 RC

ENGINE

Type

V12 diesel HDi

Capacity (litres)

5.5

Particulate filter

2 (1 on each exhaust system)

Max power (kW / bhp)

515 / 700

Max torque (Nm)

1200

GEARBOX

6-speed electronically controlled sequential gearbox

ESTIMATED PERFORMANCE

1000 m D.A. (s)

22

Max speed (km/h / mph)

+300 / +186

SCx

0.556

SUSPENSION

Front and Rear: drop link, double wishbone suspension

STRUCTURE

Carbon composite and aluminium honeycomb

TYRES Ė MICHELIN Pilot Sport PS2

Front

255 / 35 R 20

Rear

285 / 30 R 21

BRAKING Ė BREMBO Carbon Ceramic

Front:

Disc diameter and thickness (mm)

380 / 34

Brake calliper

6 pistons

Rear:

Disc diameter and thickness (mm)

350 / 34

Brake calliper

4 pistons

WEIGHT (kg)

1800

EXTERIOR DIMENSIONS

Length (m)

5.123

Width including mirrors (m)

2.154

Wheelbase (m)

3.150

Height (m)

1.370

Front overhang (m)

1.010

Rear overhang (m)

0.962

FUEL TANK (litres)

100

INTERIOR

Glazed surface

(total / windscreen / glass roof) in m2

3 / 1.3 / 0.5

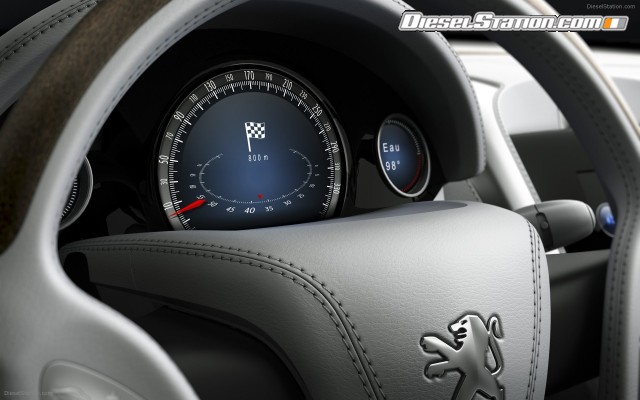

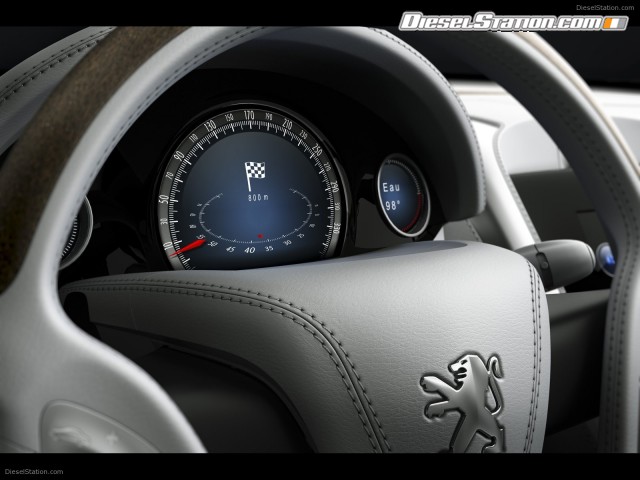

Instrumentation

Digital

Fascia mounted multifunction screen type

Touch screen LCD XGA 10.4"

Capacity of front luggage area (dm3)

220

Capacity of rear luggage area with motorised opening (dm3)

300
