With the do-it-all CRF230L, you get a compact and lightweight adventure-loving dual-sport machine that willingly serves as an economical commuter, a motor-home runabout or a weekend outback-exploration vehicle.
Dependable 223cc single-cylinder air-cooled four-stroke engine offers plenty of user-friendly power and lots of torque spread over a wide rpm range.

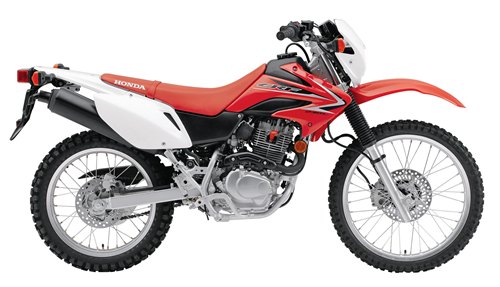

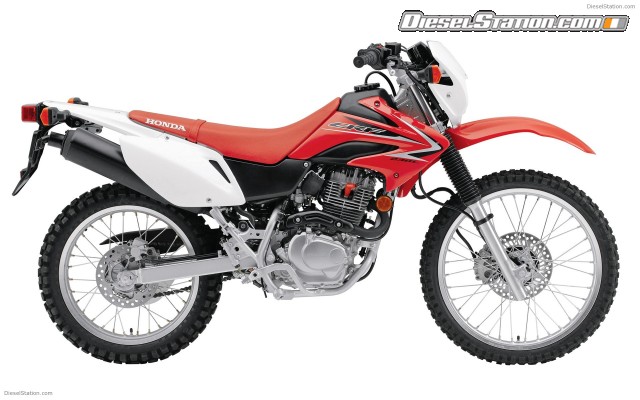

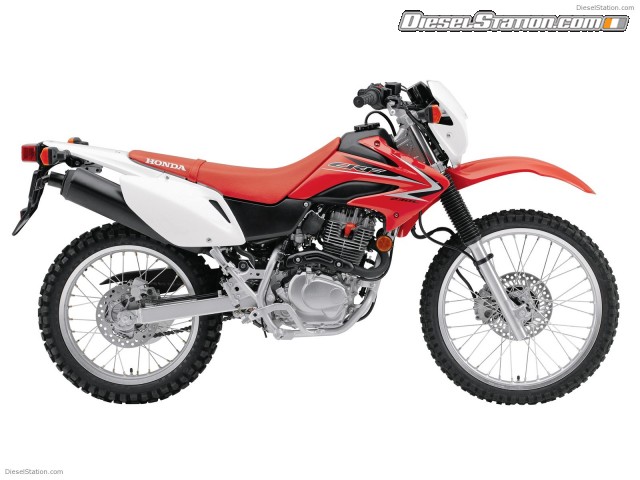

CRF230L
With the do-it-all CRF230L, you get a compact and lightweight adventure-loving dual-sport machine that willingly serves as an economical commuter, a motor-home runabout or a weekend outback-exploration vehicle.
Features & Benefits
Engine/Drivetrain
- Dependable 223cc single-cylinder air-cooled four-stroke engine offers plenty of user-friendly power and lots of torque spread over a wide rpm range.
- 30mm constant-velocity (CV) carburetor for crisp throttle response.
- Electric start for easy starting.
- Lightweight aluminum crankcase.
- Maintenance-free CD ignition.
- Heavy-duty clutch offers smooth, progressive engagement.
- Smooth-shifting, versatile six-speed transmission.
- Heavy-duty O-ring–sealed chain for durability and reduced maintenance.
Chassis/Suspension
- Box-section aluminum swingarm.
- Lightweight semi-double-cradle high-tensile steel frame.
- 37mm leading-axle Showa front fork offers 9.0 inches of suspension travel.
- Fork boots keep dirt and moisture away from fork seals.
- Heavy-duty Showa rear shock offers 6.3 inches of travel.
- Snail-type chain adjusters for easy maintenance.
- Powerful 240mm front disc brake, and 220mm rear disc brake.
- Strong, lightweight rims with straight-pull spokes.
Additional Features
- CRF®-R-inspired bodywork and graphics.
- Motocross-style seat is low and comfortable and allows maximum rider movement.
- Durable front and rear steel sprockets.
- High-quality handlebar with comfortable grips.
- Wide, cleated, folding, self-cleaning footpegs and brake pedal for secure footing.
- Quiet, USDA-qualified spark arrester/muffler.
- Maintenance-free sealed battery.
- Ignition switch key for added security.
- Transferable one-year limited warranty; extended coverage available with a Honda Protection Plan.
- When you buy a new Honda Powersports Product, you may be eligible to receive a complimentary one-year membership in the Honda Riders Club of America®, which includes an exclusive Members-only magazine, rider training benefits, access to the Members-only Clubhouse Web site and much more. Some limitations apply. For more information on the HRCA®, log on to hrca.honda.com.
Honda Genuine Accessories
- Rear Rack.
- Hand Guard Kit.
2009 Specifications
Model: CRF230L
Engine Type: 223cc air-cooled single-cylinder four-stroke
Bore and Stroke: 65.5mm x 66.2mm
Compression ratio: 9.0:1
Valve Train: SOHC; two-valve
Induction: 30mm CV carburetor
Ignition: CD
Transmission: Six-speed
Final Drive: #520 O-ring–sealed chain
Suspension
Front: 37mm leading-axle Showa fork; 9.0 inches travel
Rear: Pro-Link Showa single shock with spring preload adjustability; 6.3 inches travel
Brakes
Front: Single 240mm disc
Rear: 220mm disc
Tires
Front: 2.75 -21
Rear: 120/80-18
Wheelbase: 52.75 inches
Rake (Caster angle): 26.83°
Trail: 103mm (4.0 inches)
Seat Height: 31.9 inches
Ground Clearance: 9.5 inches
Fuel Capacity: 2.3 gallons, including 0.7-gallon reserve
Color: Red
Curb Weight*: 267 pounds
*Includes all standard equipment, required fluids and full tank of fuel--ready to ride.
