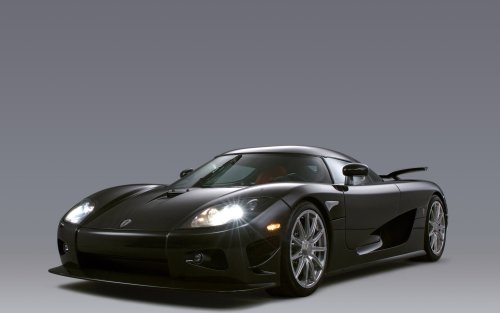

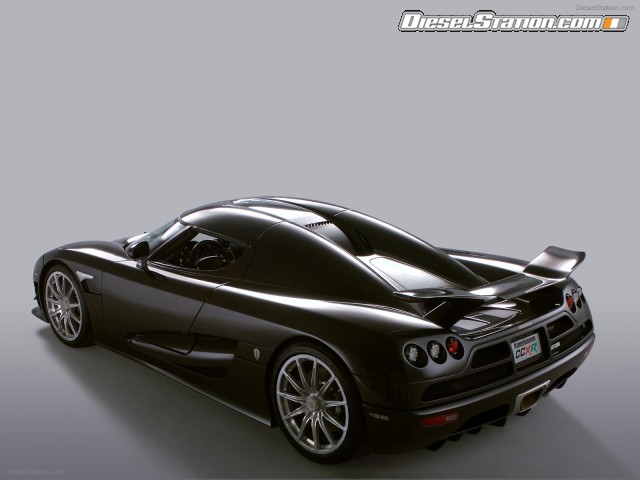

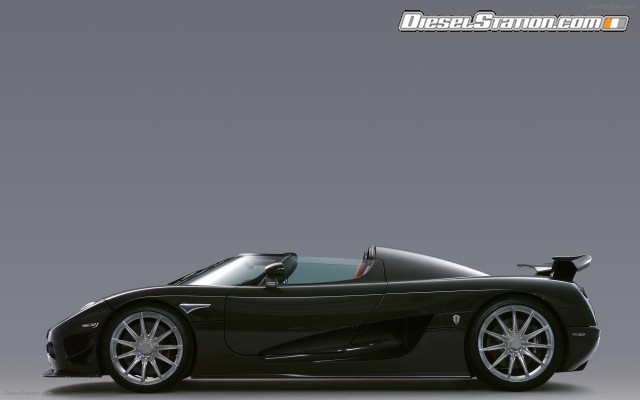

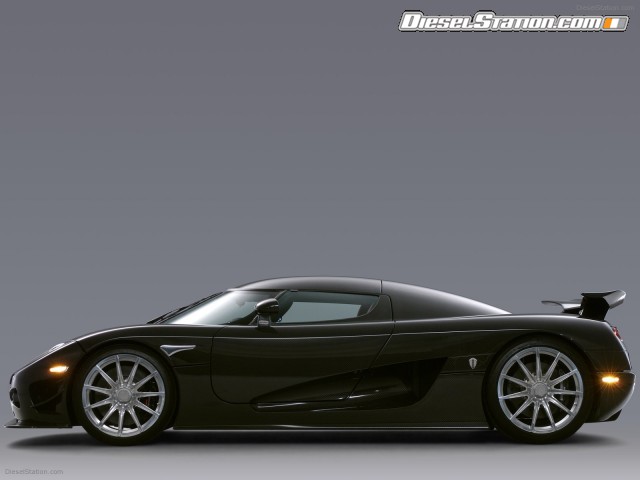

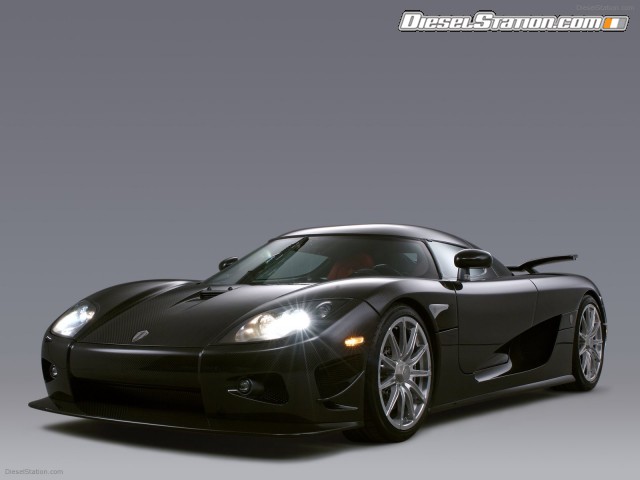

Koenigsegg CCXR Unlimited Edition

Koenigsegg North America
Koenigsegg Automotive, the Swedish super car manufacturer was founded in 1994 by Christian von Koenigsegg, who had a dream to build the fastest, lightest, most aerodynamic Supercar in the World. A decade later, his dream came true and today Koenigsegg cars have got one of the highest ranked pedigrees in the supercar industry, which includes world records, awards and outstanding resumes from the world press.

Koenigsegg has so far delivered 62 cars around the world, which includes five cars to the US and more are to come. The delivery time for a CCX/CCXR is around 12-15 month.

Koenigsegg Automotive found that the US market stands for around 50% of the supercar market, which meant that in 2006 the CCX was introduced, a car designed to pass the US regulations.

In May 2008, Koenigsegg North America (run by Mr Augie Fabela II) was set up to supply the American market with this exotic Swedish super car. Mr Fabela II is Koenigsegg´s US distributor and is now focusing on setting up a select few dealerships around the US, starting with Universal Autosport in the New York area and Symbolic Motor Car Company in Las Vegas.

The kick-off for Koenigsegg North America takes place at Pebble Beach, on the 14th of August, where Symbolic Motor Cars are exhibiting the CCX.

Koenigsegg have now seriously entered the North America market, and are looking forward to a successful working relationship with Mr Fabela II and all the future dealerships around the US.

Technical Specifications:

Acceleration: 0-100 km/h (0-62 mph) 2.9 seconds
0-200 km/h 8.75 sec. 0-200-0 km/h 13.55 sec.
0-300-0 km/h: 27.8 Sec.
Top Speed: 400+ km/h (250+ mph) (without rear wing)
Braking distance: 32m (100-0 km/h)
Lateral G-force: 1.5 G
Fuel consumption:
Highway travel: 18 l/100 km (E85 fuel),
Combined: 22 l/100km (E85)
Weight-to-power ratio: 1.26 kg/hp
Weight distribution: 45% front, 55% rear
Cd. 0,36 Frontal area 1.867 m2
Total Downforce at 250 km/h: 350 kg
Flat underside of chassis. Venturi tunnels at rear of chassis/body.
Carbon fibre with aluminium honeycomb and integrated fuel
tanks for optimal weight distribution and safety.
Monocoque torsional rigidity: 58,000 nm/degree.
Weight including tanks: 72 kg.
Front and rear suspension: Double wishbones, two-way
adjustable VPS gas-hydraulic shock absorbers, pushrod operated.
Electronically adjustable ride height.
Front: Cro-Mo subframe, with integrated crash members.
Rear: Semi-stressed engine and gearbox with support struts,
for optimal rigidity and no engine inertia movements.
Fully machined aircraft aluminium uprights, with SKF LeMans
specification 150mm angle contact ball bearings.
GKN hollow/gun-drilled driveshafts.
Koenigsegg Z-style progressive and lightweight anti-roll bars
front and rear.
Koenigsegg aluminium V8, 4 valves per cylinder, double
overhead camshafts.
Displacement: 4800 cc
Compression: 9.2:1
Sequential, multipoint fuel injection.
Twin Rotrex centrifugal superchargers with response system,
1.6 bar boost pressure.
Dry sump lubrication with oil spray piston cooling.
Power output: 1018 Bhp at 7000 rpm
Maximum torque: 1080 Nm (796 ft/lb) at 5600 rpm
Carbon fibre intake manifold with optimised intake tracts.
Patented response charge system for optimal engine response.
Tig-welded ceramic-coated stainless steel exhaust manifold
with merge collector.
Emission levels: Euro IV
Weight: 178 kg
Specially developed transversal 6-speed gearbox, with
optional paddle-shift.
Torque sensitive limited slip differential.
Clutch: Dual Plate, Ø 240 mm. (in paddle-shift version without
Clutch pedal)
Final ratio: 3,364
1st gear: 2,875
2nd gear: 1,773
3rd gear: 1,267
4th gear: 1,000
5th gear: 0,833
6th gear: 0,711
Reverse gear: 3,000
Rack and pinion power-assisted steering. 2.7 turns lock-to-lock.
Turning circle: 11 metres. TRW electro-hydraulic power-assisted.
Front brakes: Ventilated ceramic discs Ø 380 mm, 34 mm
wide. 8-piston light alloy Brembo monoblock calipers. Powerassisted.
Rear brakes: Ventilated ceramic discs Ø 362 mm, 32 mm
wide. 6-piston light alloy AP Racing callipers. Power-assisted.
Traction Control
F1-style for optimal performance with 5 different handling modes.
Koenigsegg forged alloy wheels with centre locking
Front: 19” x 9.5”
Rear: 20” x 12.5”
Michelin Pilot Sport 2 (or Cup tires)
Unidirectional with asymmetric tread pattern
Front: 255/35 – 19” (Y)
Rear: 335/30 – 20” (Y)

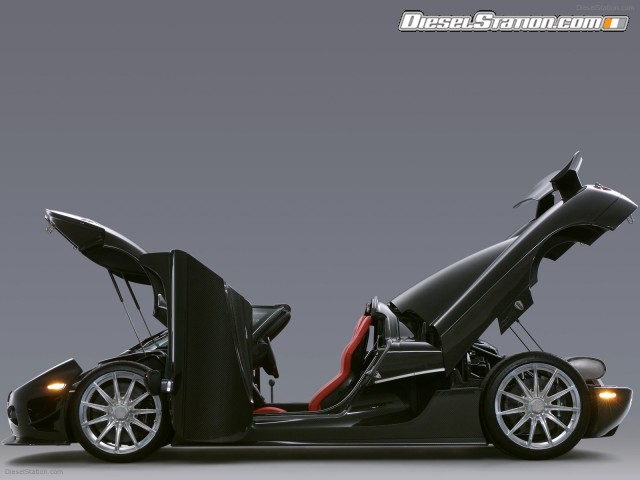

Two-door, two seater with removable hardtop stowable under
the front hood lid. Body made from pre-impregnated carbon
fibre/kevlar and lightweight sandwich reinforcements.
Electrical System
Solid state digital semiconductors - no fuses or relays. Can
bus operated and fully programmable functionality.
Visible carbon body, dual airbags, Edition rear wing, winglets,
large front splitter, detachable storable hardtop with glass
roof, power windows, adjustable pedals and steering column,
adjustable seats in rake and length, carbon ceramic brakes
with ABS, hydraulic lifting system, power steering, power
brakes, satnav, rear camera, DVD, CD, I-pod connection, sat
radio, climate control, digital warning and info system, G
sensor, alarm, tyre monitoring system, silver key, leather carpets,
roof stowage bag, car cover, forged aluminium wheels,
Chrono instrument cluster.
Extra Equipment
Paddle-shift, carbon wheels, fitted luggage, special leather
and colour requests, Inconell exhaust system.
Total length: 4293 mm (169”)
Total width: 1996 mm (78.6”)
Total height: 1114 mm (44”)
Ground clearance: 100 mm (3.9”)
Fuel capacity: 70 litres (18.5 US gallons)
Luggage compartment: 120 litres (31.7 US gallons)
Dry weight: 1280 kg (2821 lbs)
5 Years’ Warranty. All information correct at time of printing,
and subject to change.

Koenigsegg CCXR Unlimited Edition
